Line type, also called line style, defines the way a line or arc is drawn: as a solid line, a series of dashes, a series of dots, or a combination of dashes and dots.
The line type for all subsequent line primitives is selected using GpiSetLineType. If you want to change the line type to LINETYPE_DOT, for example, any line or arc primitive subsequently drawn is drawn as a dotted line. The following table illustrates the nine standard line types provided by PM.
You cannot define other line types for PM applications.
Standard Line Types
旼컴컴컴컴컴컴컴컴컴컴컴컫컴컴컴컴컴컴컴컴컴컴컴컴쩡컴컴컴컴컴커 쿟ype 쿔dentifer 쿗ong Value � 쳐컴컴컴컴컴컴컴컴컴컴컴컵컴컴컴컴컴컴컴컴컴컴컴컴탠컴컴컴컴컴캑 쿏otted line 쿗INETYPE_DOT �1L � 쳐컴컴컴컴컴컴컴컴컴컴컴컵컴컴컴컴컴컴컴컴컴컴컴컴탠컴컴컴컴컴캑 쿞hort-dashed line 쿗INETYPE_SHORTDASH �2L � 쳐컴컴컴컴컴컴컴컴컴컴컴컵컴컴컴컴컴컴컴컴컴컴컴컴탠컴컴컴컴컴캑 쿏ash-dot line 쿗INETYPE_DASHDOT �3L � 쳐컴컴컴컴컴컴컴컴컴컴컴컵컴컴컴컴컴컴컴컴컴컴컴컴탠컴컴컴컴컴캑 쿏ouble-dotted line 쿗INETYPE_DOUBLEDOT �4L � 쳐컴컴컴컴컴컴컴컴컴컴컴컵컴컴컴컴컴컴컴컴컴컴컴컴탠컴컴컴컴컴캑 쿗ong-dashed line 쿗INETYPE_LONGDASH �5L � 쳐컴컴컴컴컴컴컴컴컴컴컴컵컴컴컴컴컴컴컴컴컴컴컴컴탠컴컴컴컴컴캑 쿏ash-double-dot line 쿗INETYPE_DASHDOUBLEDOT �6L � 쳐컴컴컴컴컴컴컴컴컴컴컴컵컴컴컴컴컴컴컴컴컴컴컴컴탠컴컴컴컴컴캑 쿞olid line 쿗INETYPE_SOLID �7L � 쳐컴컴컴컴컴컴컴컴컴컴컴컵컴컴컴컴컴컴컴컴컴컴컴컴탠컴컴컴컴컴캑 쿔nvisible line 쿗INETYPE_INVISIBLE �8L � 쳐컴컴컴컴컴컴컴컴컴컴컴컵컴컴컴컴컴컴컴컴컴컴컴컴탠컴컴컴컴컴캑 쿌lternate pels on 쿗INETYPE_ALTERNATE �9L � 읕컴컴컴컴컴컴컴컴컴컴컴컨컴컴컴컴컴컴컴컴컴컴컴컴좔컴컴컴컴컴켸
The default line type (LINETYPE_DEFAULT) is identical to the LINETYPE_SOLID
type, and has a long value of 0L. The error line type (LINETYPE_ERROR) has
a long value of -1L. The following figure illustrates the nine line types.
Your application can determine the current line type using GpiQueryLineType.

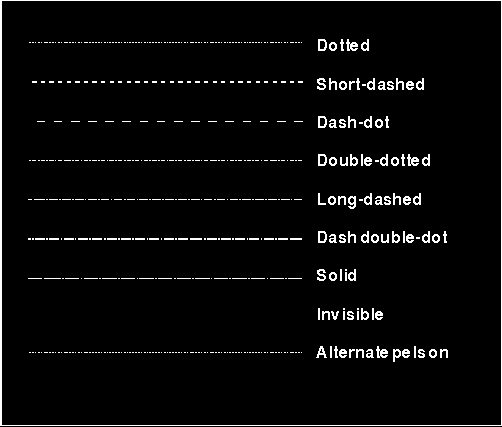

The Nine Line Types
